Production Equipment
ShingTech Electronics provides excellent computer equipment management system to timely control the production schedule.
We acquire most high-end production equipment to manufacture the most sophisticated and outstanding PCB.
We acquire most high-end production equipment to manufacture the most sophisticated and outstanding PCB.
Equitments List
Production Equipment List
| PCB Full Process Equipment | ||||
| No. | Equipment | Brand | Specification | Quantity |
| 1 | Semi-Automatic HASL Machine | 1 | ||
| 2 | Automatic Packing Machine | 2 | ||
| 3 | Semi-Automatic Vacuum Pack Machine | 2 | ||
| 4 | Double Door Oven | 6 | ||
| 5 | Single Door Oven | 1 | ||
| 6 | Spot Welding Machine | 1 | ||
| 7 | Flatting Machine | 1 | ||
| 8 | Microscope & Measuring System | 2 | ||

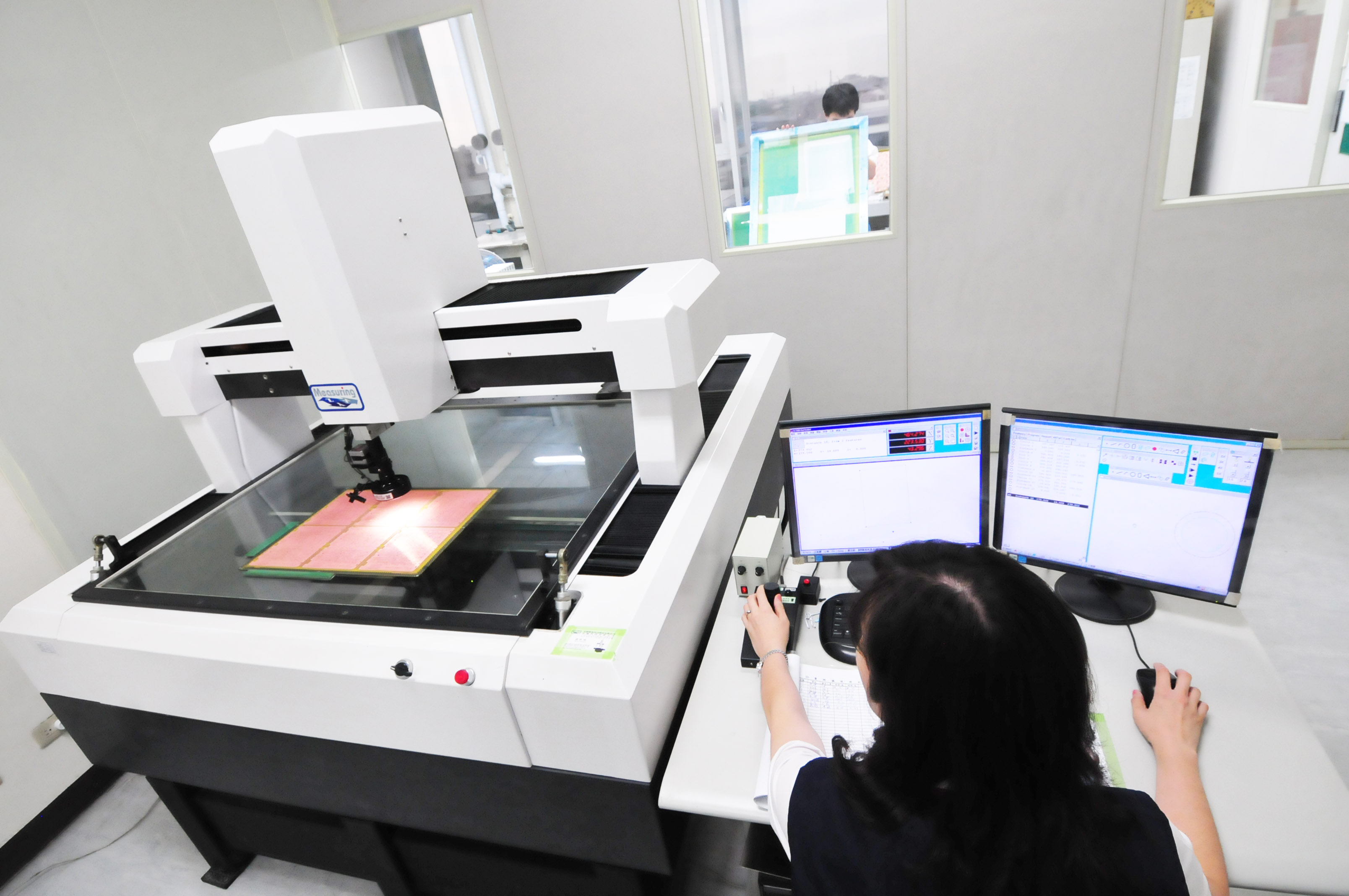

| 9 | Vision Measuring Machine | 1 | ||
| 10 | Time Domain Reflectometer (TDR) | HP 54754A | 1 | |

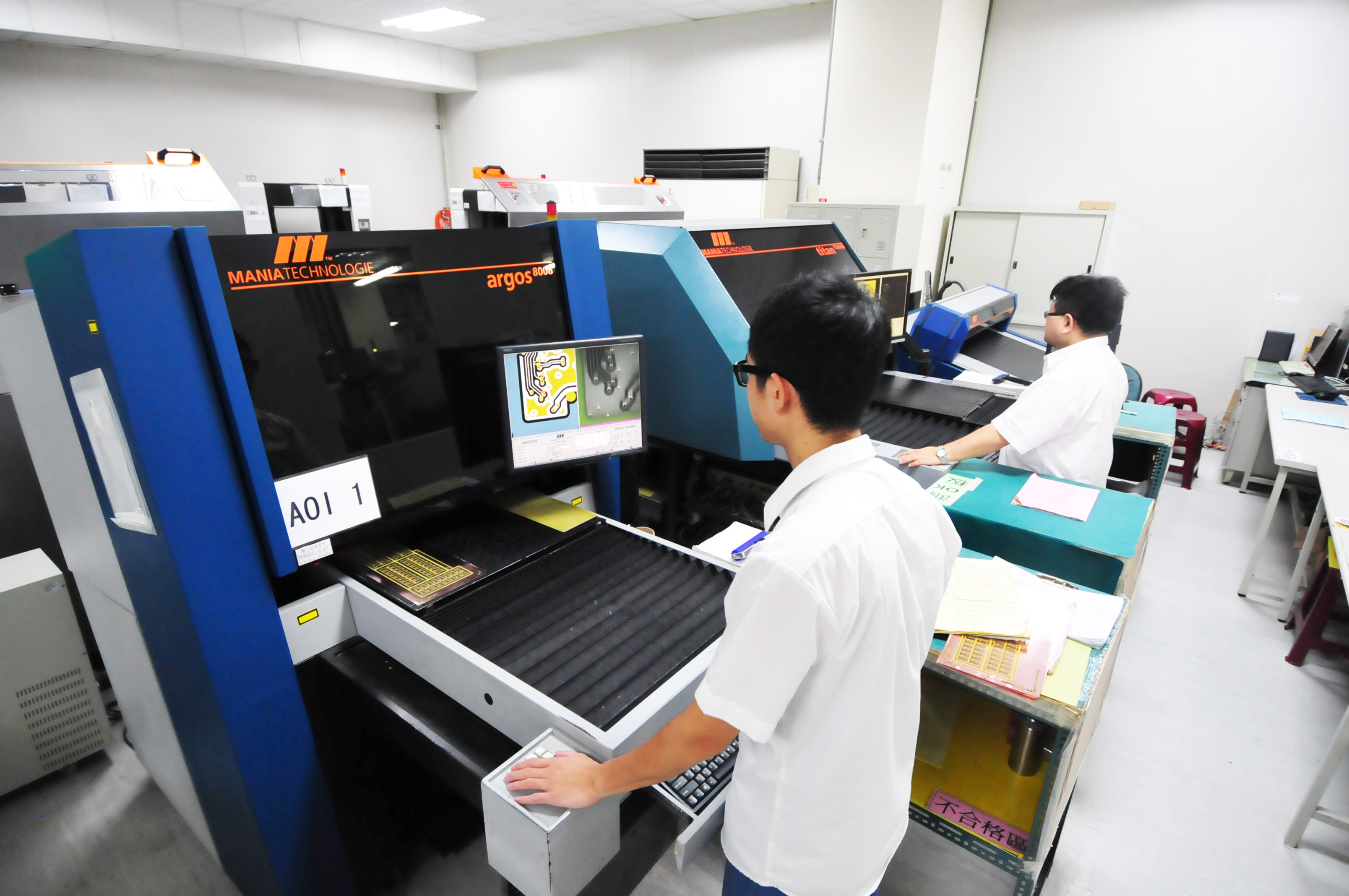

| 11 | Automatic Optical Inspection (AOI ) | MANIA | 1 | |

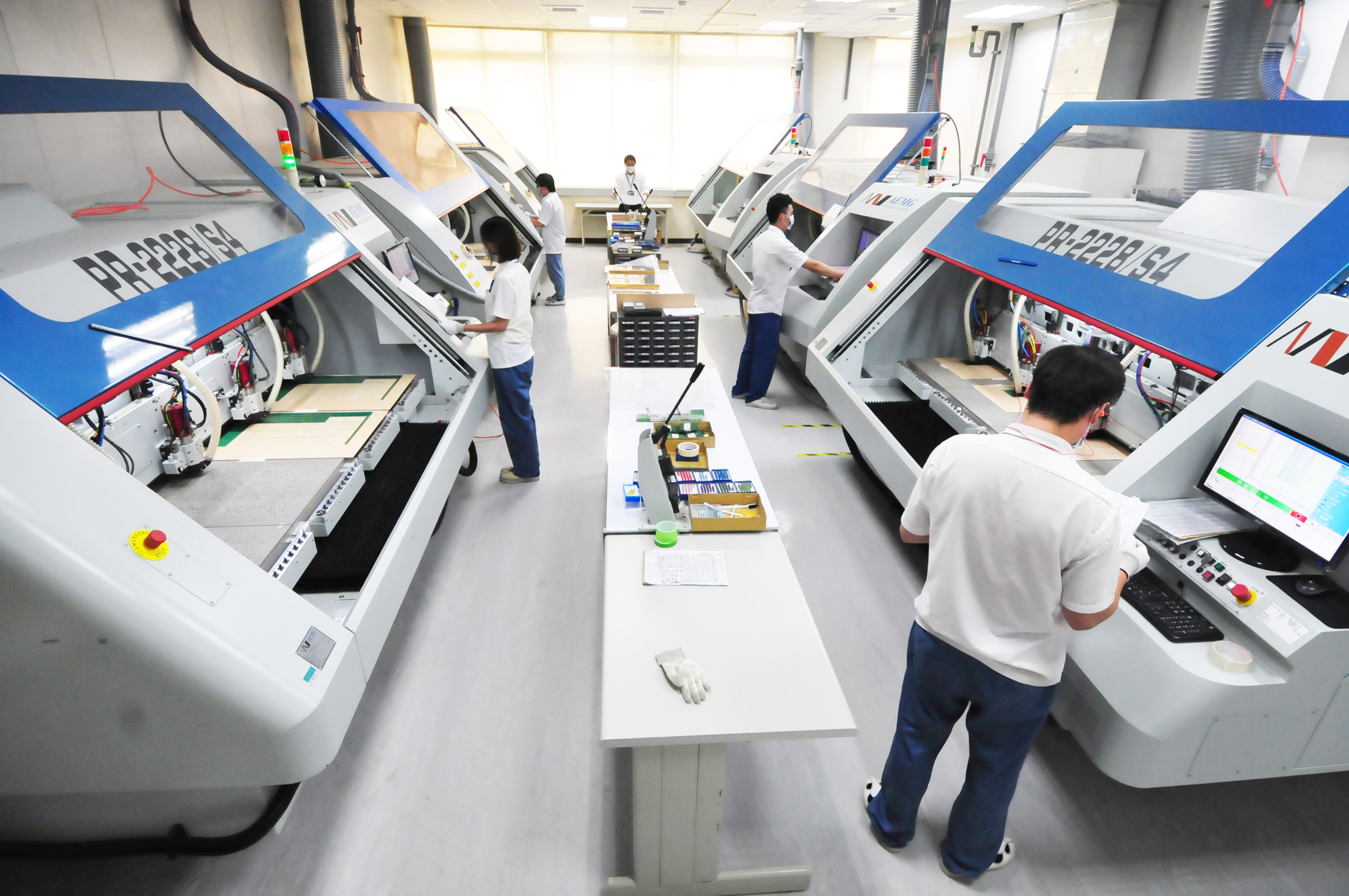

| 12 | Flying Probe Tester | ATG A5 | 8 axes | 2 |

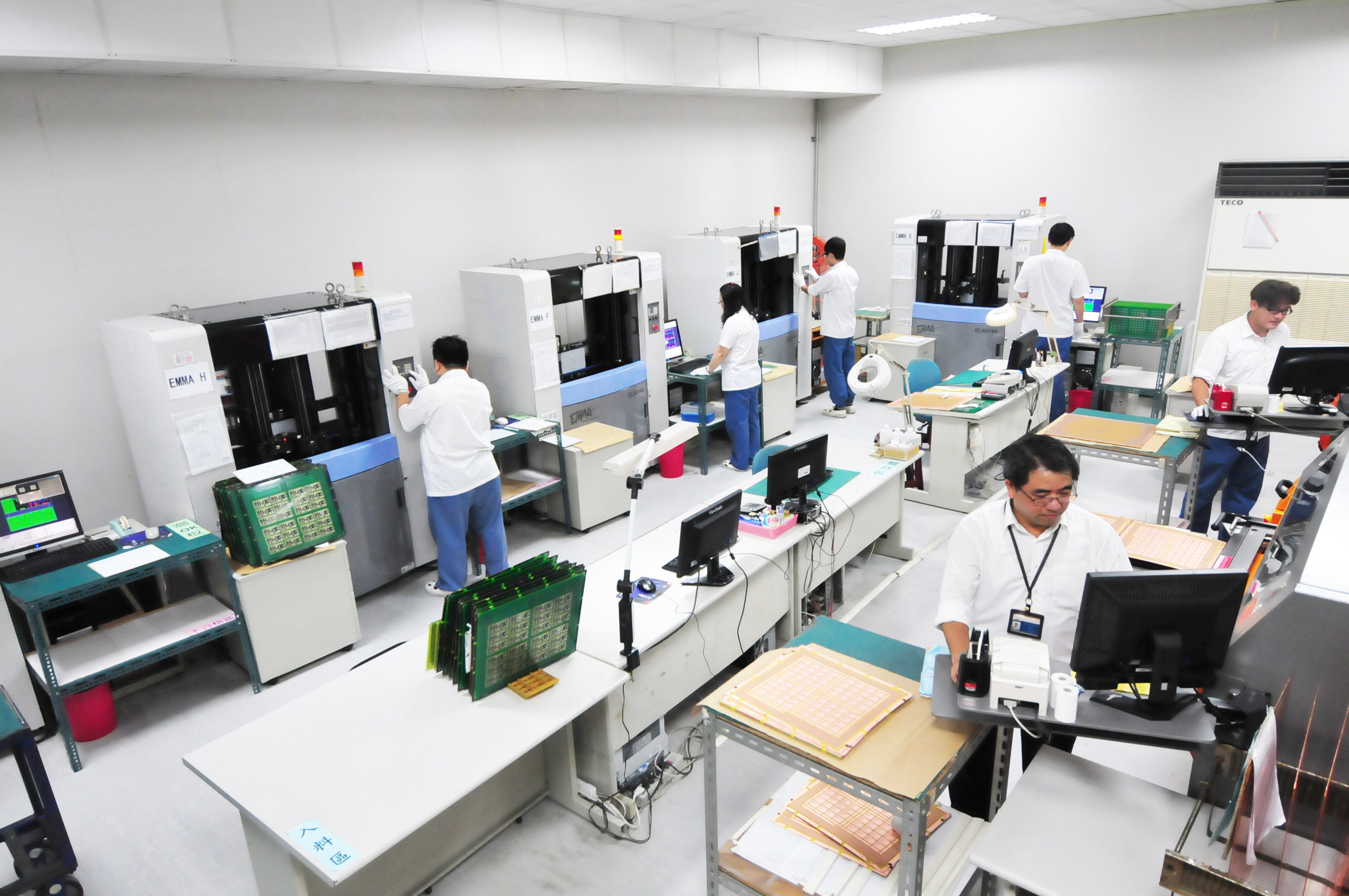

| 13 | Flying Probe Tester | EMMA | 6 | |
| 14 | JH298 Automatic Edge Banding Machine | 1 | ||
| 15 | Belt Sander | 1 | ||
| 16 | Spot Facing Machine | 1 | ||
| 17 | Board Thickness Measuring Machine | 1 | ||
| 18 | CNC Drilling Machine | 1 | ||
| 19 | Two Spindle Drilling Machine With X-RAY | 1 | ||
| 20 | Automatic return Press Line | VIGRO | 1 | |
| 21 | Press Machine | VIGRO | Cold | 1 |
| 22 | Press Machine | CEDAL | Hot | 2 |
| 23 | Black Oxide Line | 1 | ||
| 24 | Lay-up Machine | 2 | ||
| 25 | Rivet Machine | 1 | ||
| 26 | PP Puncher | 1 | ||
| 27 | PP Cutting Machine | 1 | ||
| 28 | Legend Printer | W=5mil | 4 | |

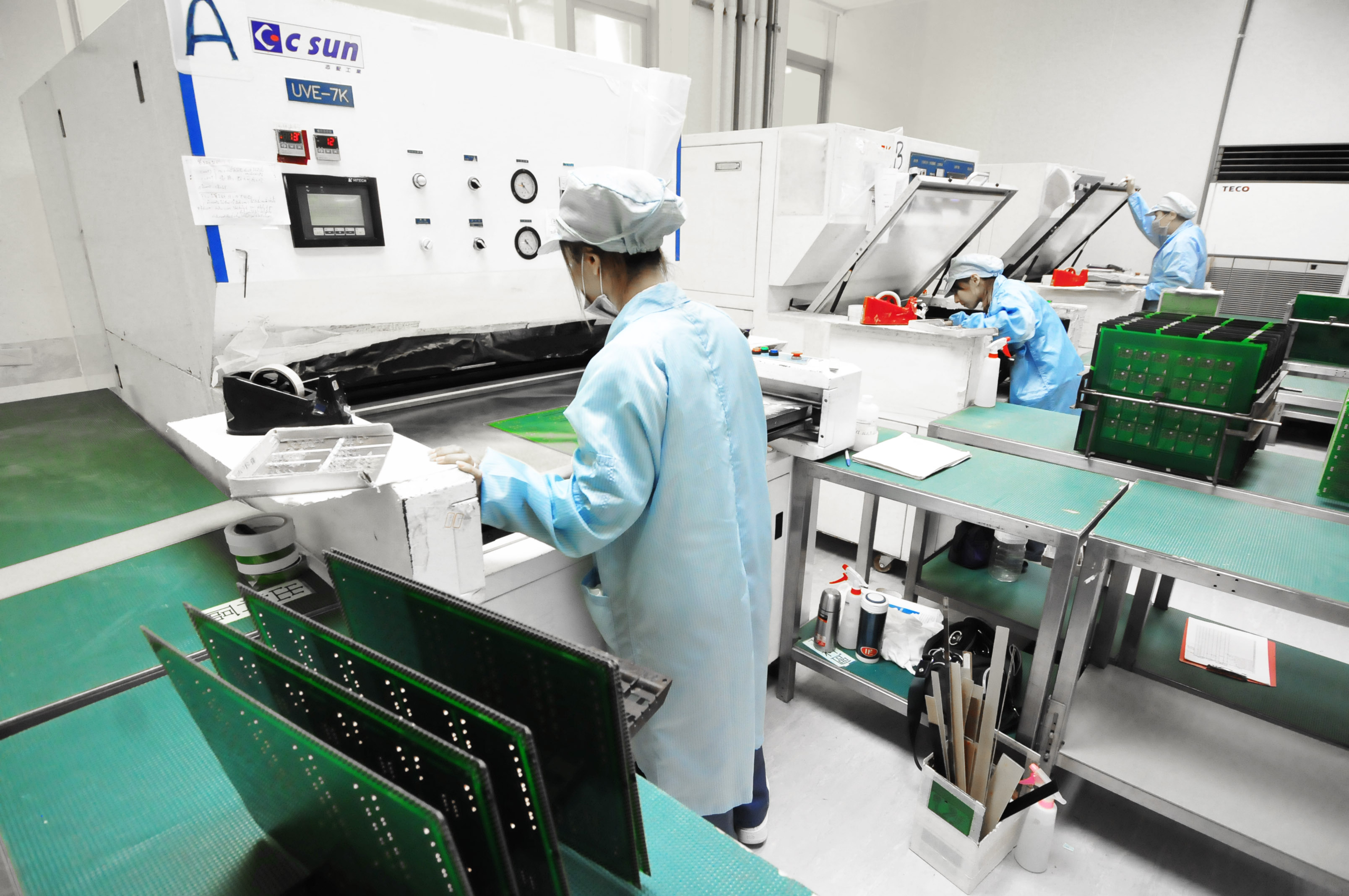

| 29 | 7K Exposure Machine | C SUN | 2 | |
| 30 | Screen Dry Oven | 1 | ||
| 31 | Double Door Oven | 6 | ||
| 32 | Silkscreen Vacuum Printing Frame | 1 | ||
| 33 | Silkscreen Plate Drying Machine | 1 | ||
| 34 | Solder Development Machine | 1 | ||
| 35 | 5K Exposure Machine | Collimated | 1 | |
| 36 | 5K Exposure Machine | C SUN | Non-Collimated | 3 |
| 37 | Double-table Printing Machine | 4 | ||
| 38 | Developing Line (Thick Board) | 2 | ||
| 39 | Dry Film Laminator | 3 | ||
| 40 | DES Line(Developing/Etching/Stripping) | SCHMID | 2mil | 1 |
| 41 | DES Line(Developing/Etching/Stripping) | SCHMID | 3mil | 1 |
| 42 | Micro-Etching Production Line | 1 | ||
| 43 | Lamination Press | 3 | ||
| 44 | CLEAN ROOM EQUIPMENT | 1 | ||
| 45 | SES Production Line | 1 | ||
| 46 | Automatic Plating (Panel Plating) | ATOTECH Potion | 1 | |
| 47 | Automatic Plating (PTH) | ATOTECH Potion | 1 | |
| 48 | Beveling Machine | 1 | ||
| 49 | V-CUT Machine | 1 | ||
| 50 | Automatic V-Scoring Machine | AEMG 恩德 | 4 | |
| 51 | Router Machine | 2 | ||
| 52 | X-ray Controlled Measuring Machine | 1 | ||
| 53 | Automatic Pin Remover | 1 | ||
| 54 | Automatic Pin Inserter | 1 | ||
| 55 | Automatic Ring Assembling Machine | 1 | ||
| 56 | Laser Drilling Machine | MITSUBISHI | 2 | |
| 57 | (Mechanical) Drilling Machine | Ofuna Group - Vela | 2 | |
| 58 | (Mechanical) Drilling Machine | KLINGELNBERG | 1 | |
| 59 | (Mechanical) Drilling Machine | HITACHI | 5 | |
| 60 | Brush Mill | 2 | ||
| 61 | Square Shearing Machine | 2 | ||
| 62 | Protected Film Laminator | 1 | ||
| 63 | Film Punch | 1 | ||
| 64 | Photo plotter | EIE | 4 | |
| HDI Commonly Used Equipment | ||||
| No. | Equipment | Brand | Specification | Quantity |
| 1 | 2.5 D Vision Measuring Machine | 1 | ||

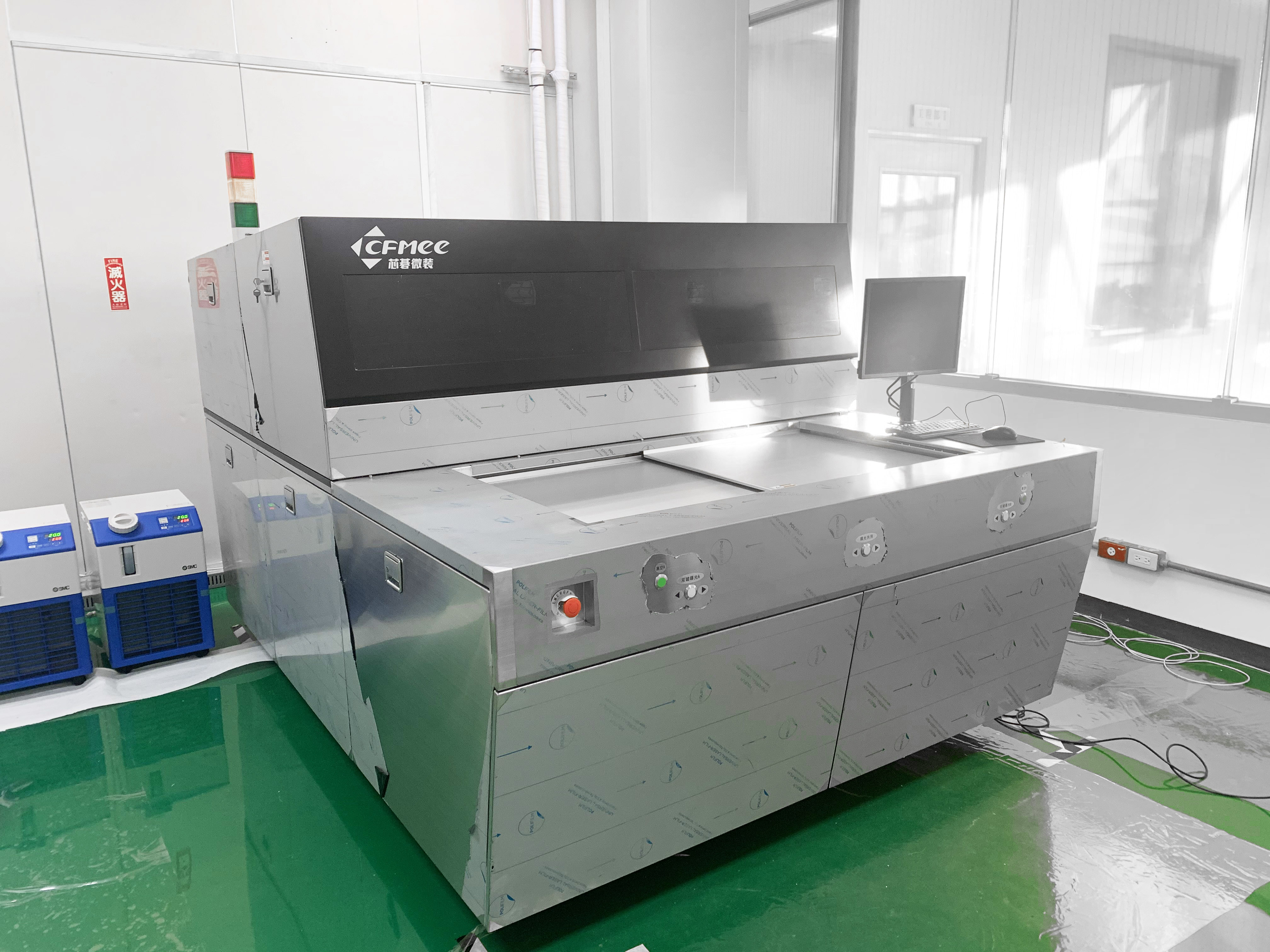

| 2 | DI Exposure Machine | 1 | ||
| 3 | LDI Exposure Machine | 1.5 mil | 2 | |
| 4 | Supercoarse Line | 1 | ||

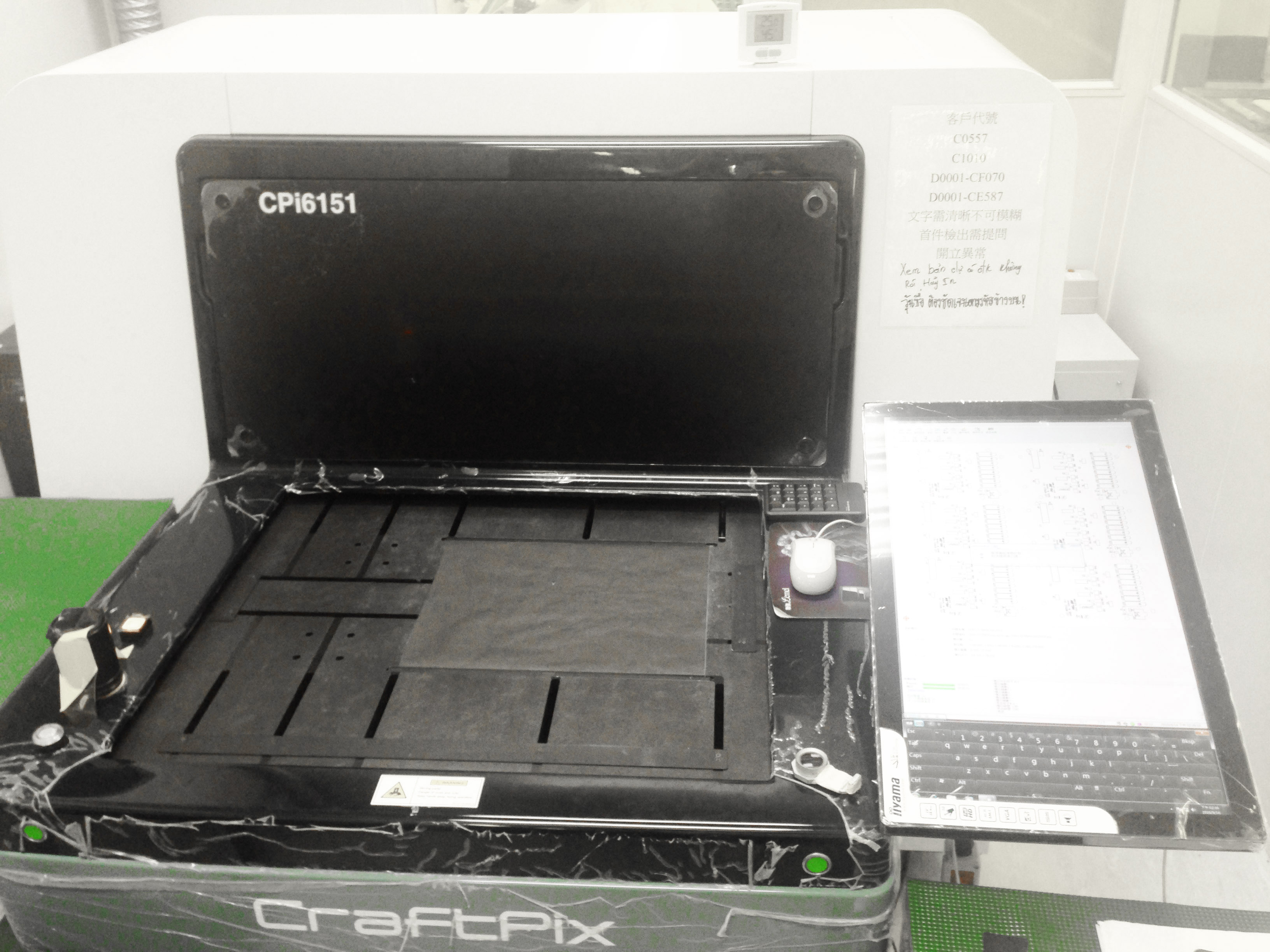

| 5 | Legend Printer | MicroCraft | W=2.5mil | 1 |

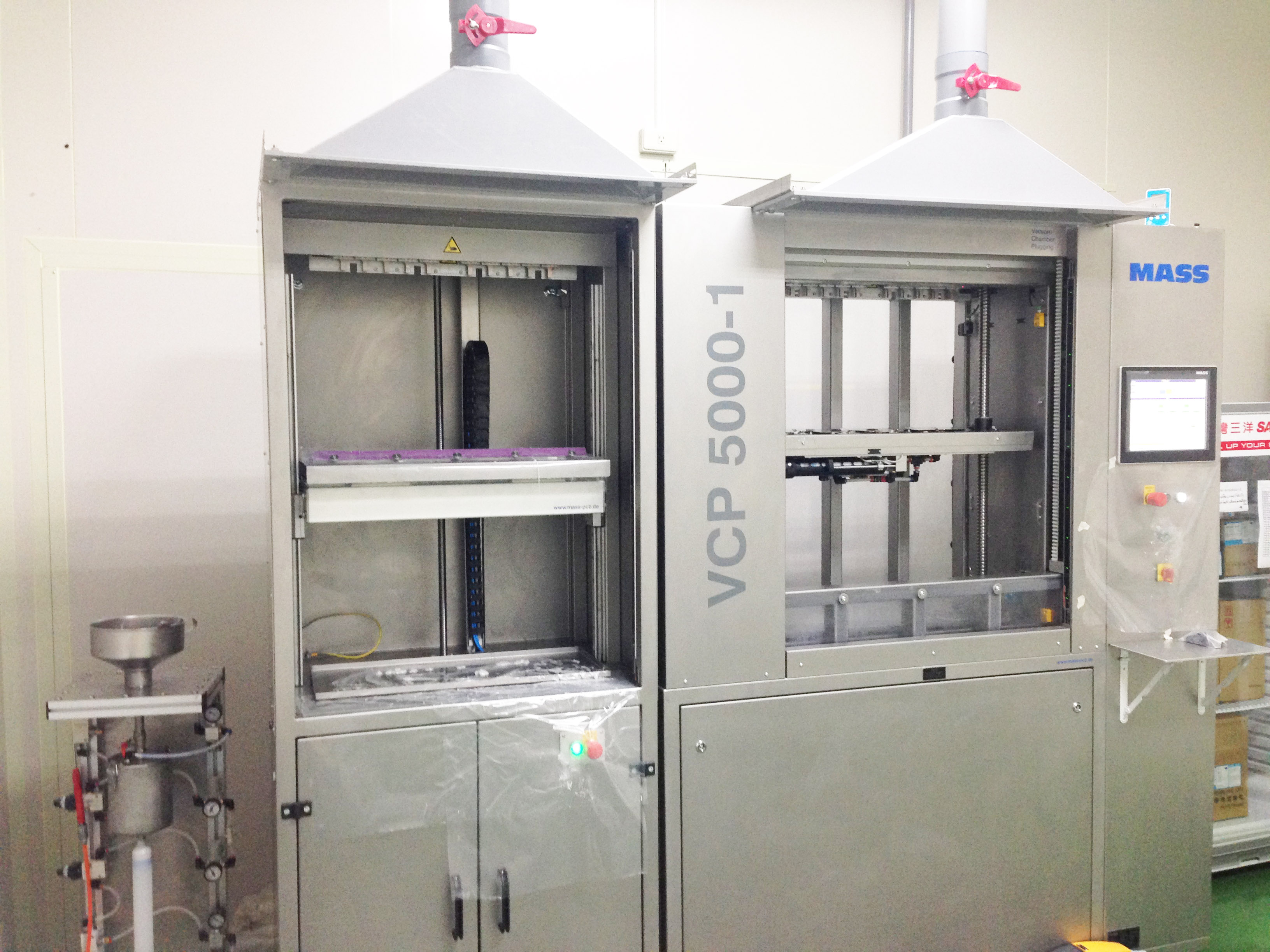

| 6 | Vacuum Epoxy Machine | MASS | 1 | |

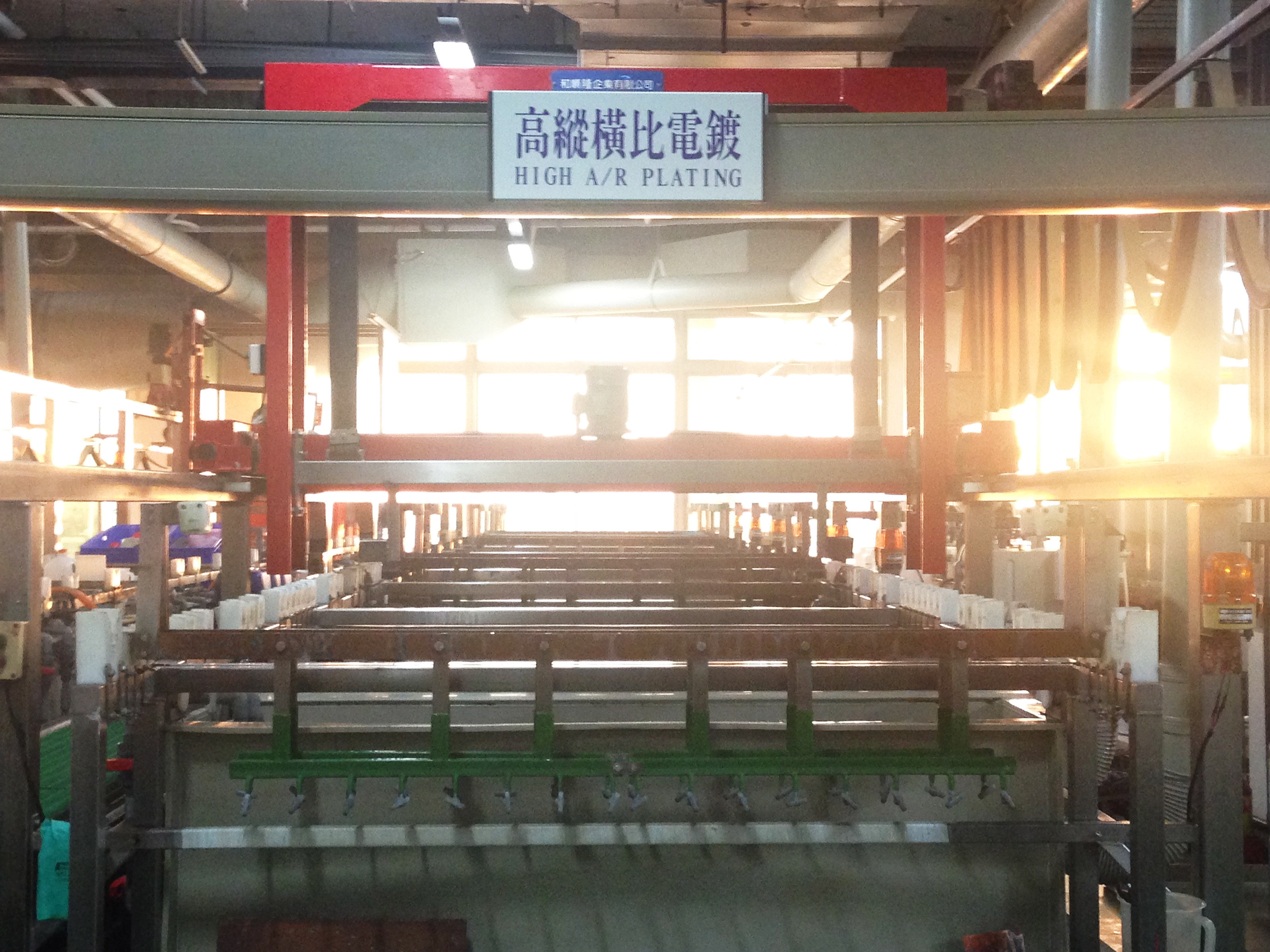

| 7 | High Aspect Ratio Plating Line | ATOTECH Potion | 1 | |

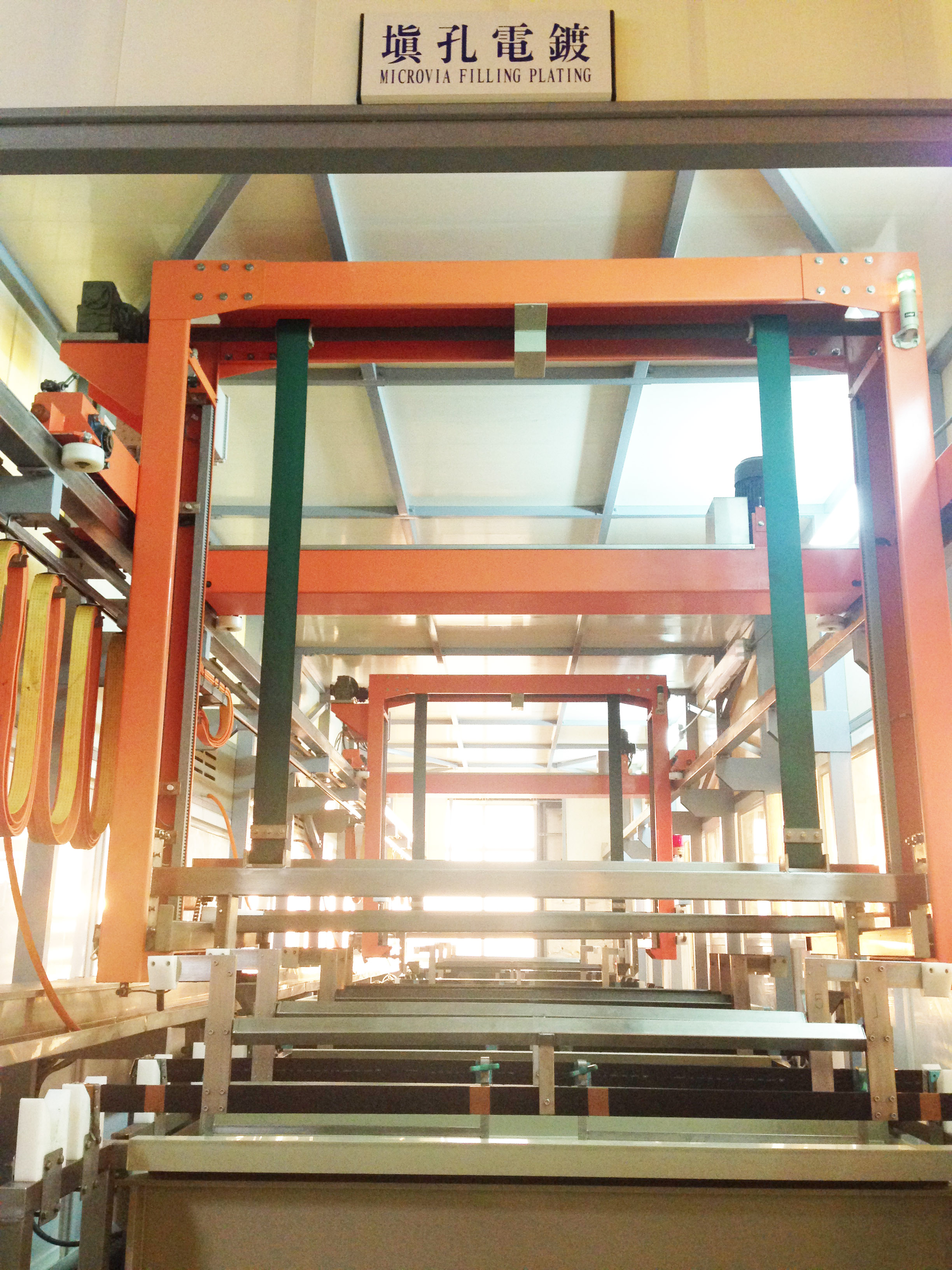

| 8 | Fill Plating Line | ATOTECH Potion | 1 | |

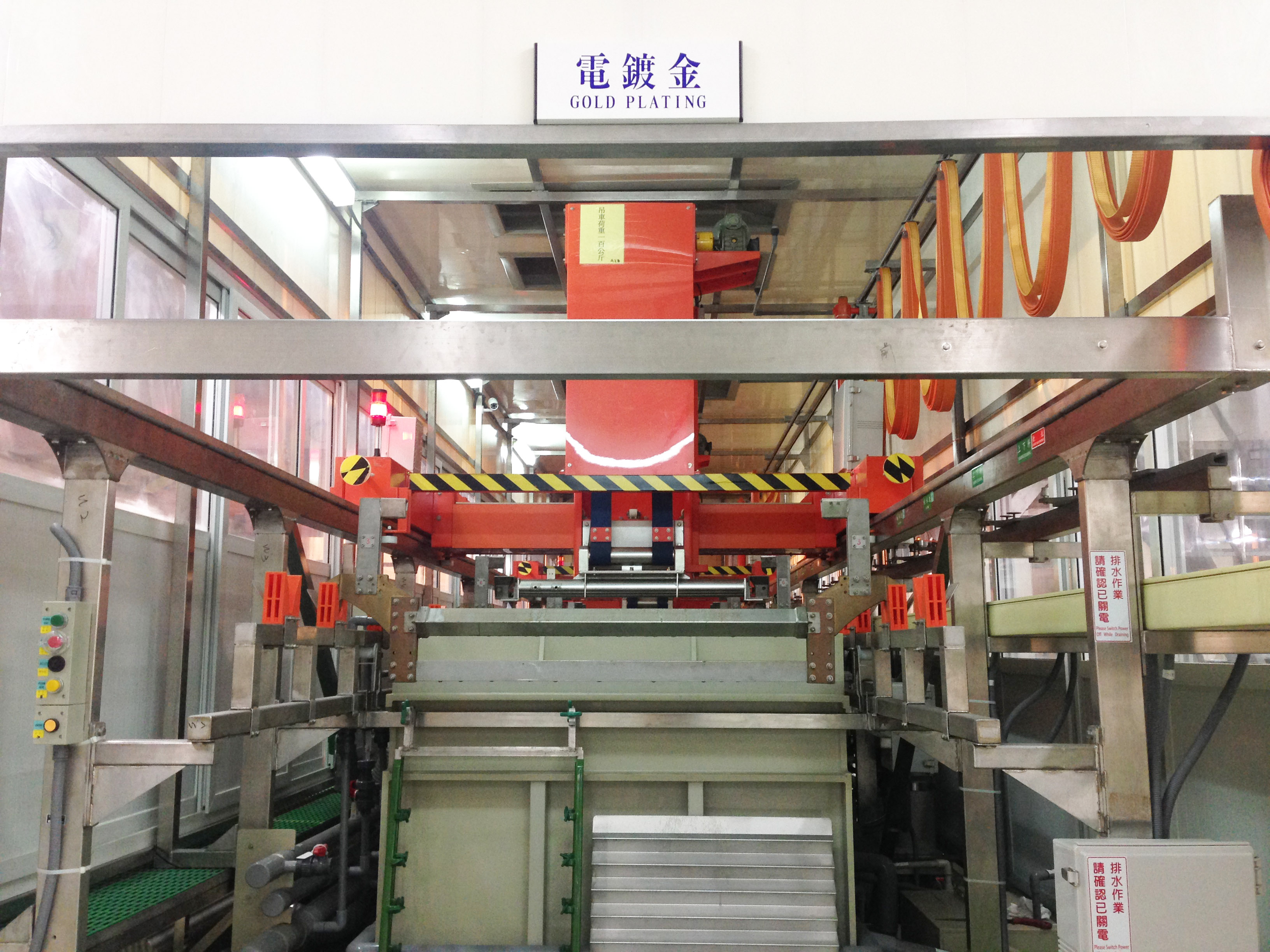

| 9 | Gold Plating Line | 1u ~ 80u | 1 | |

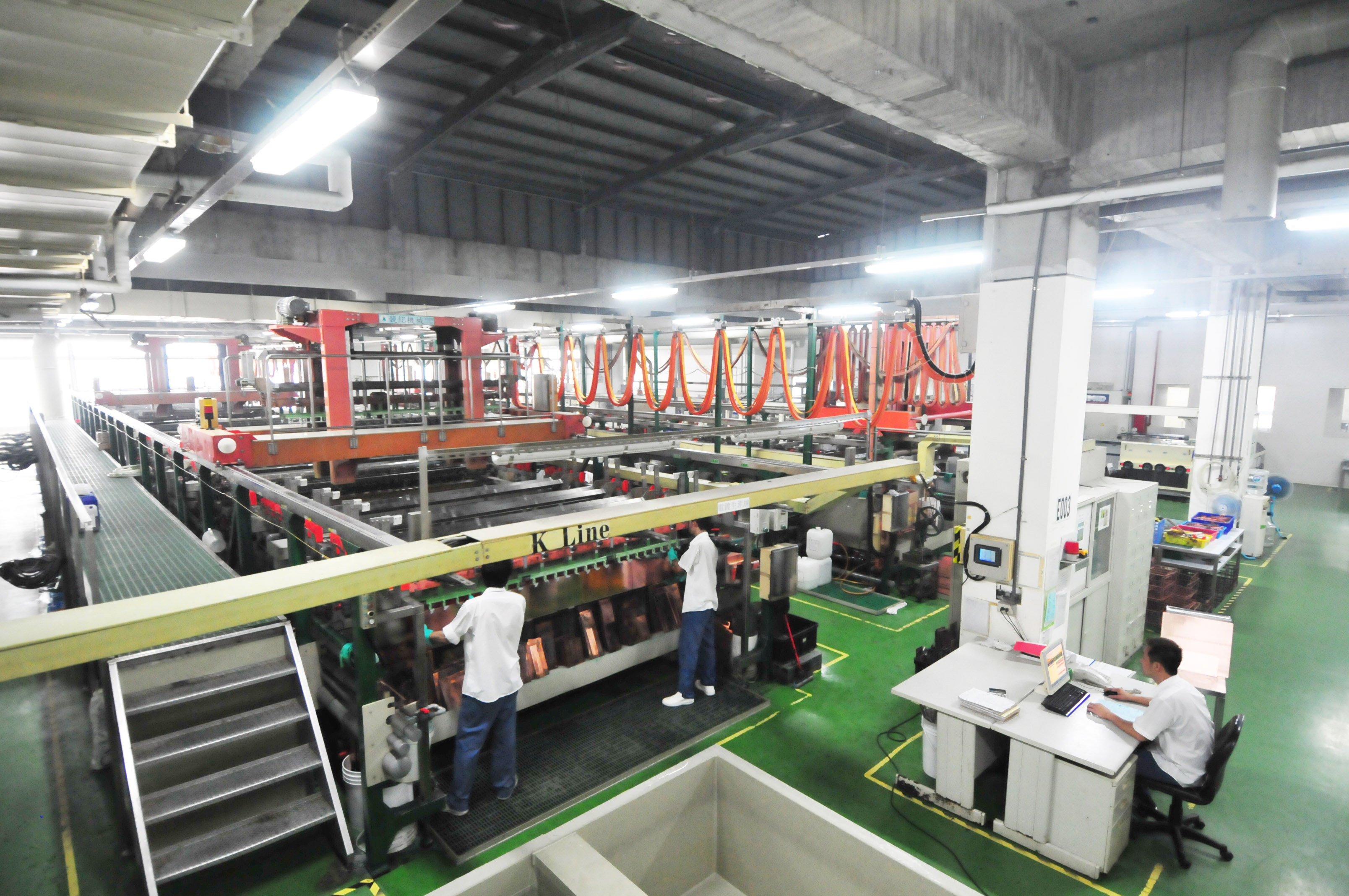

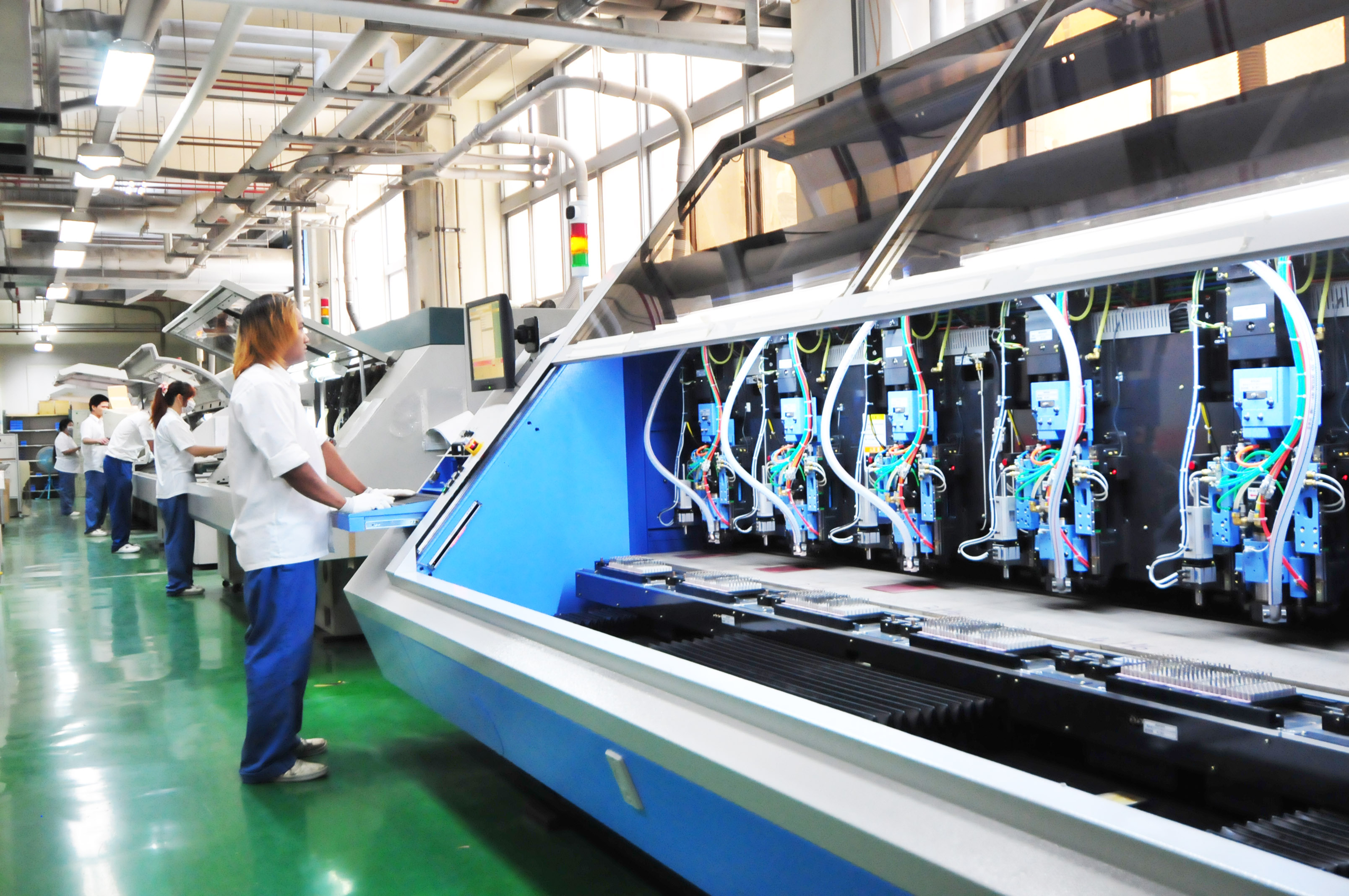

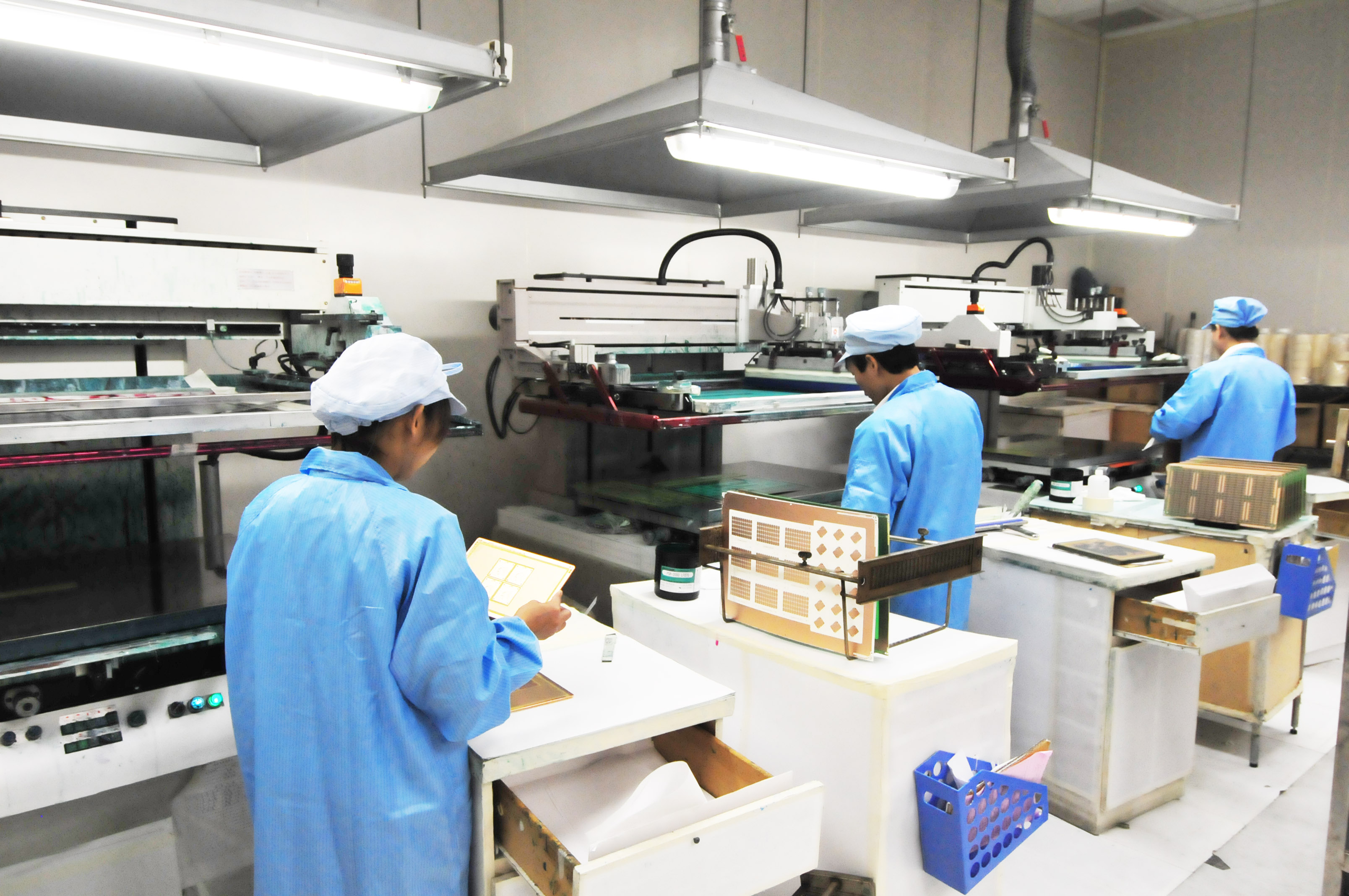

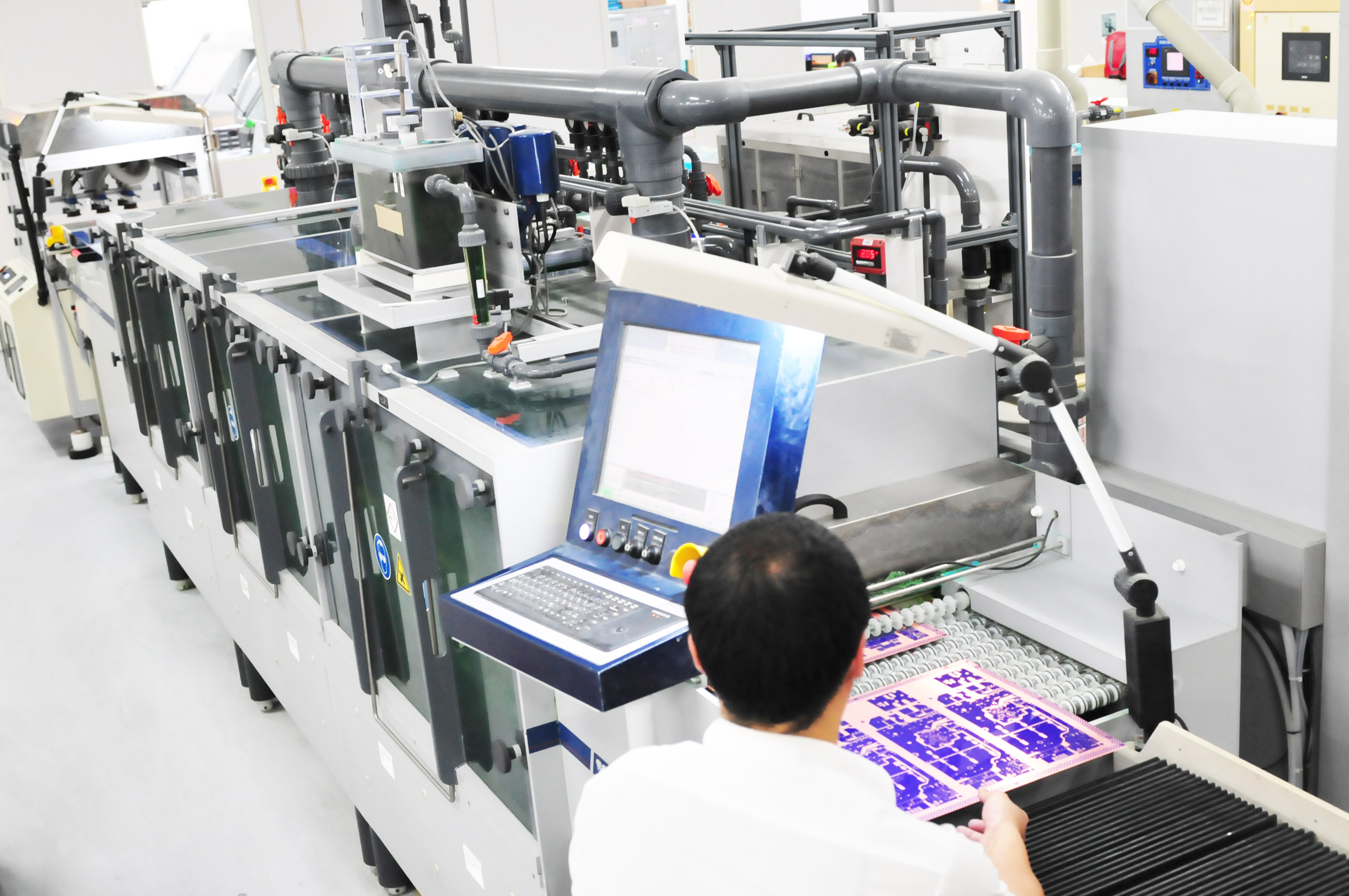

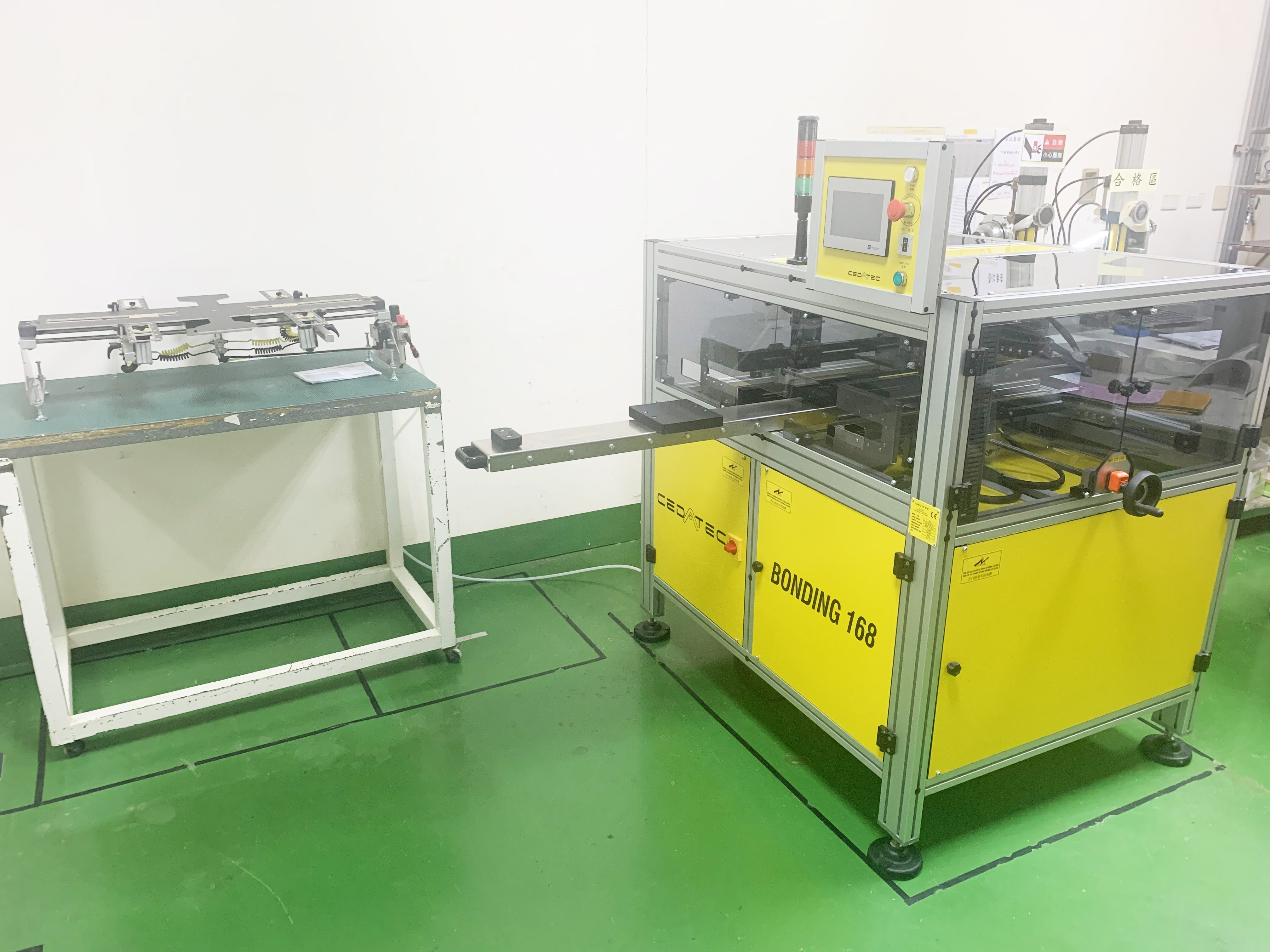

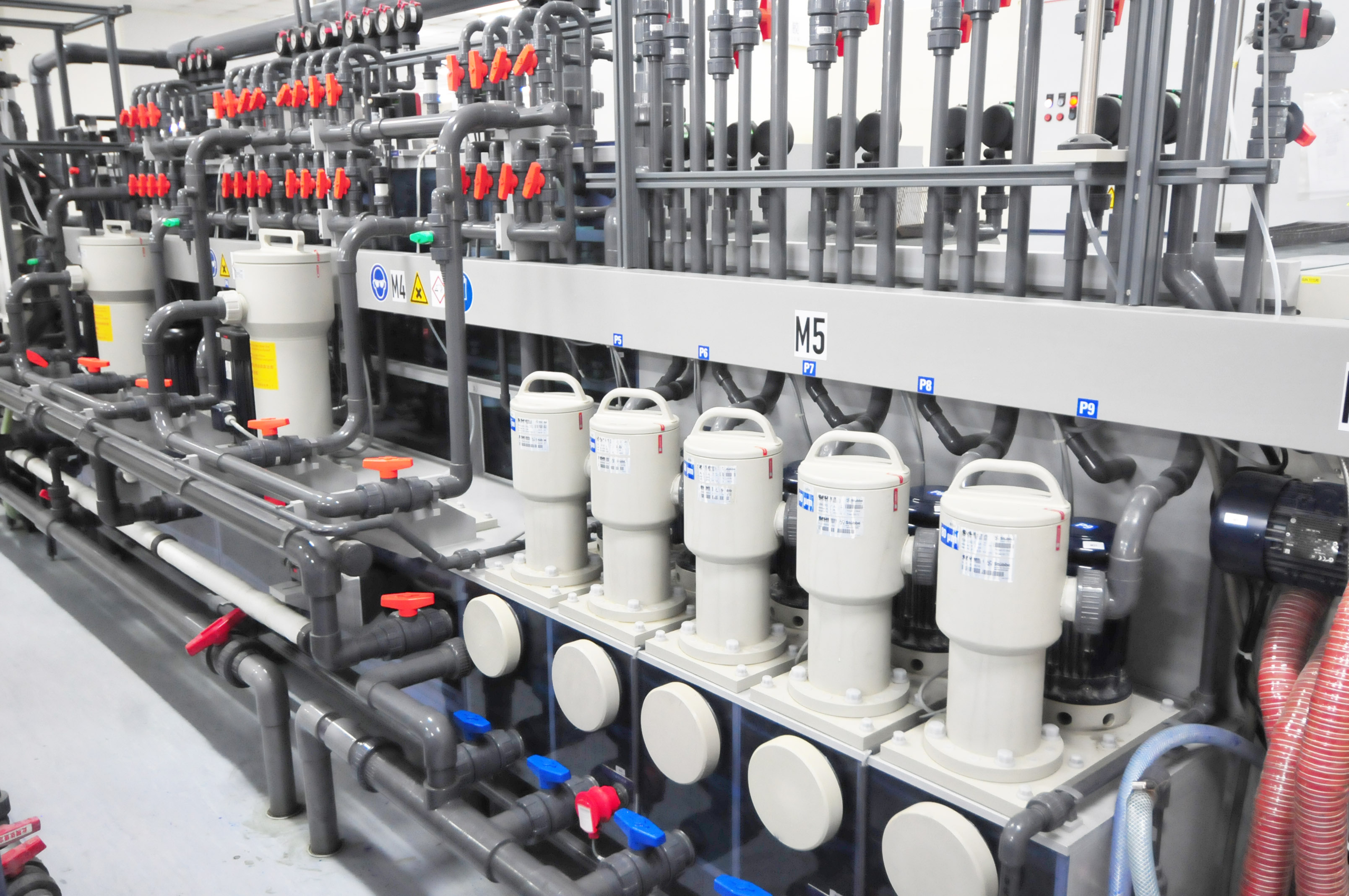

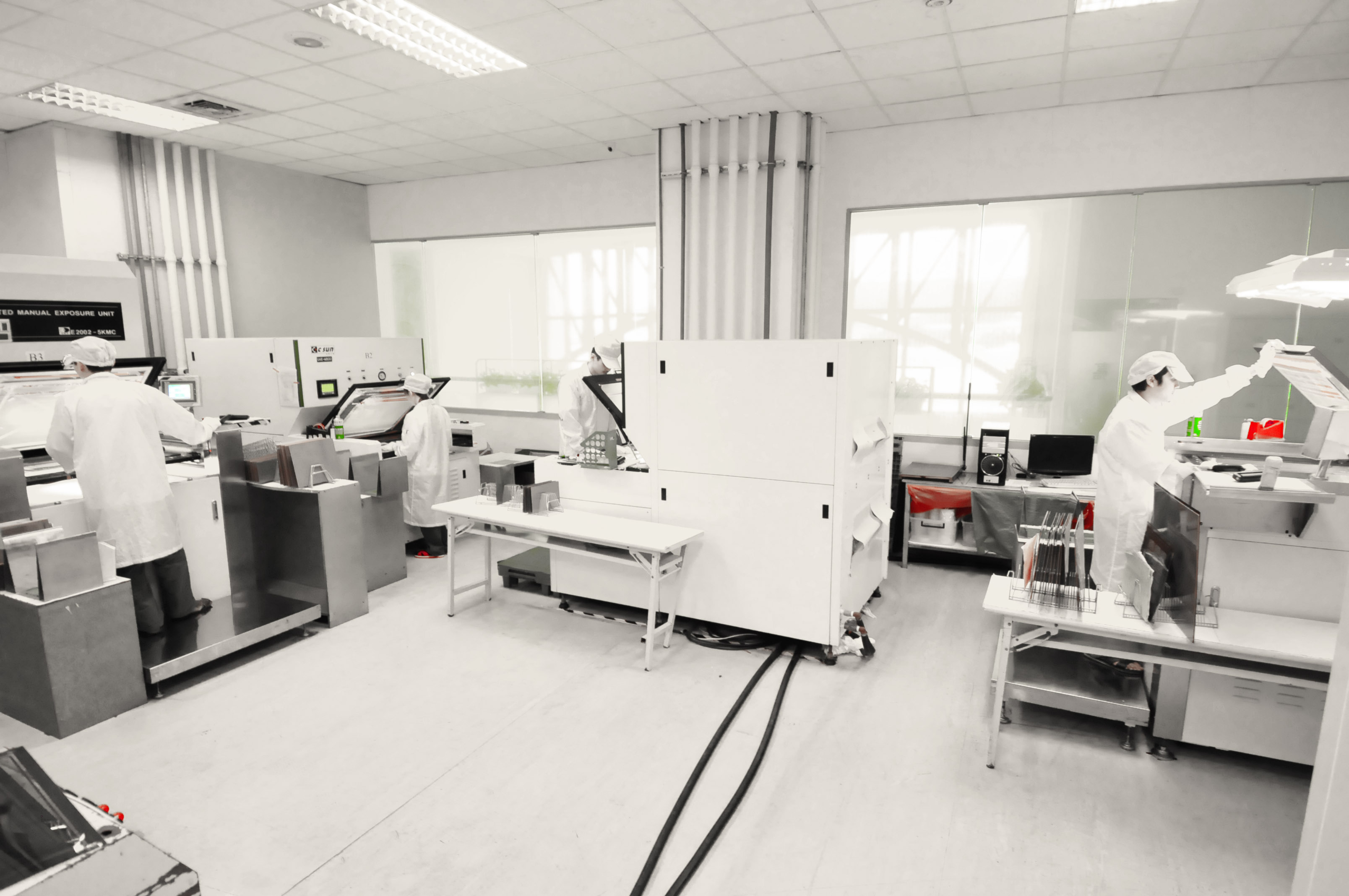

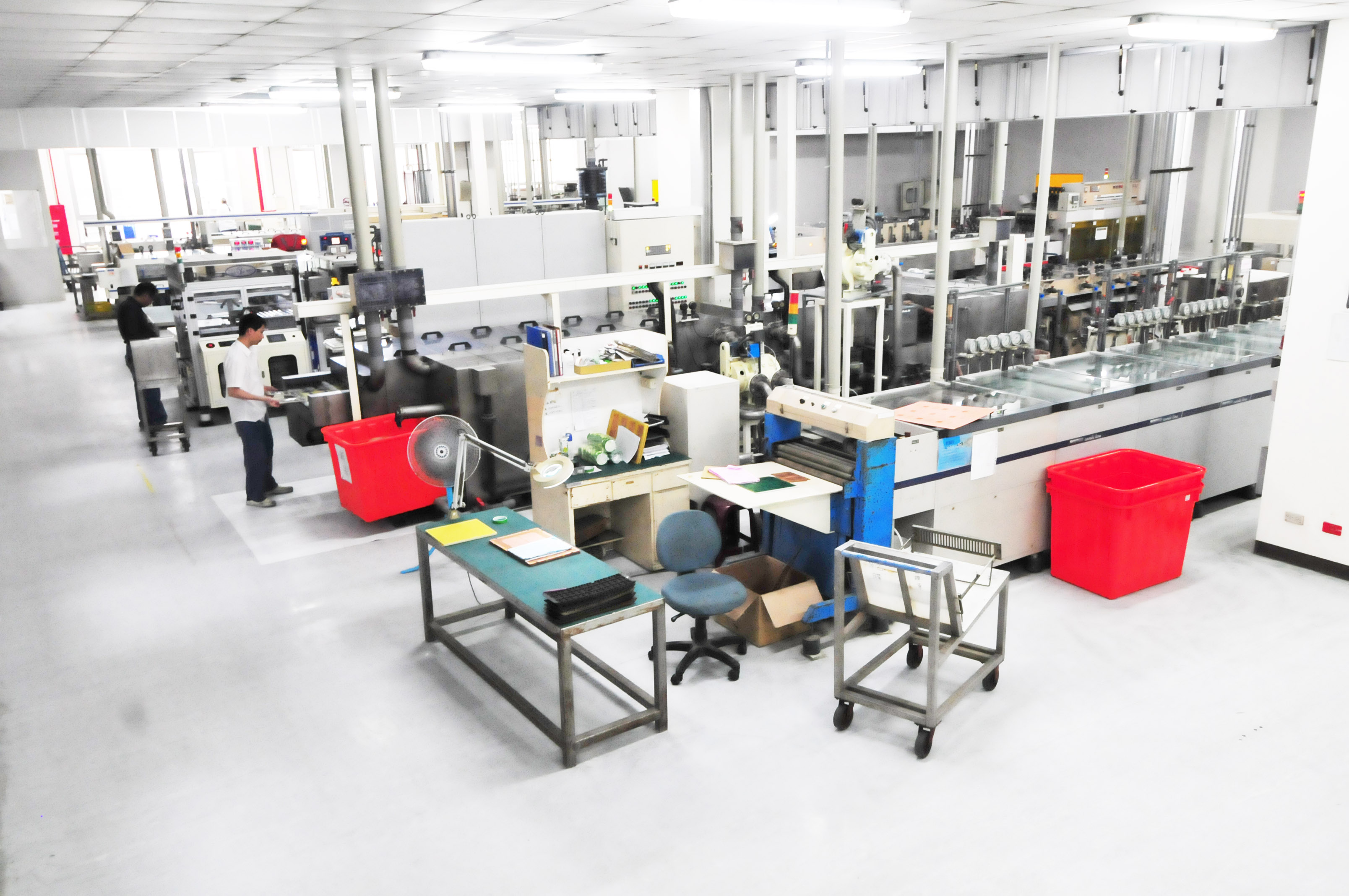

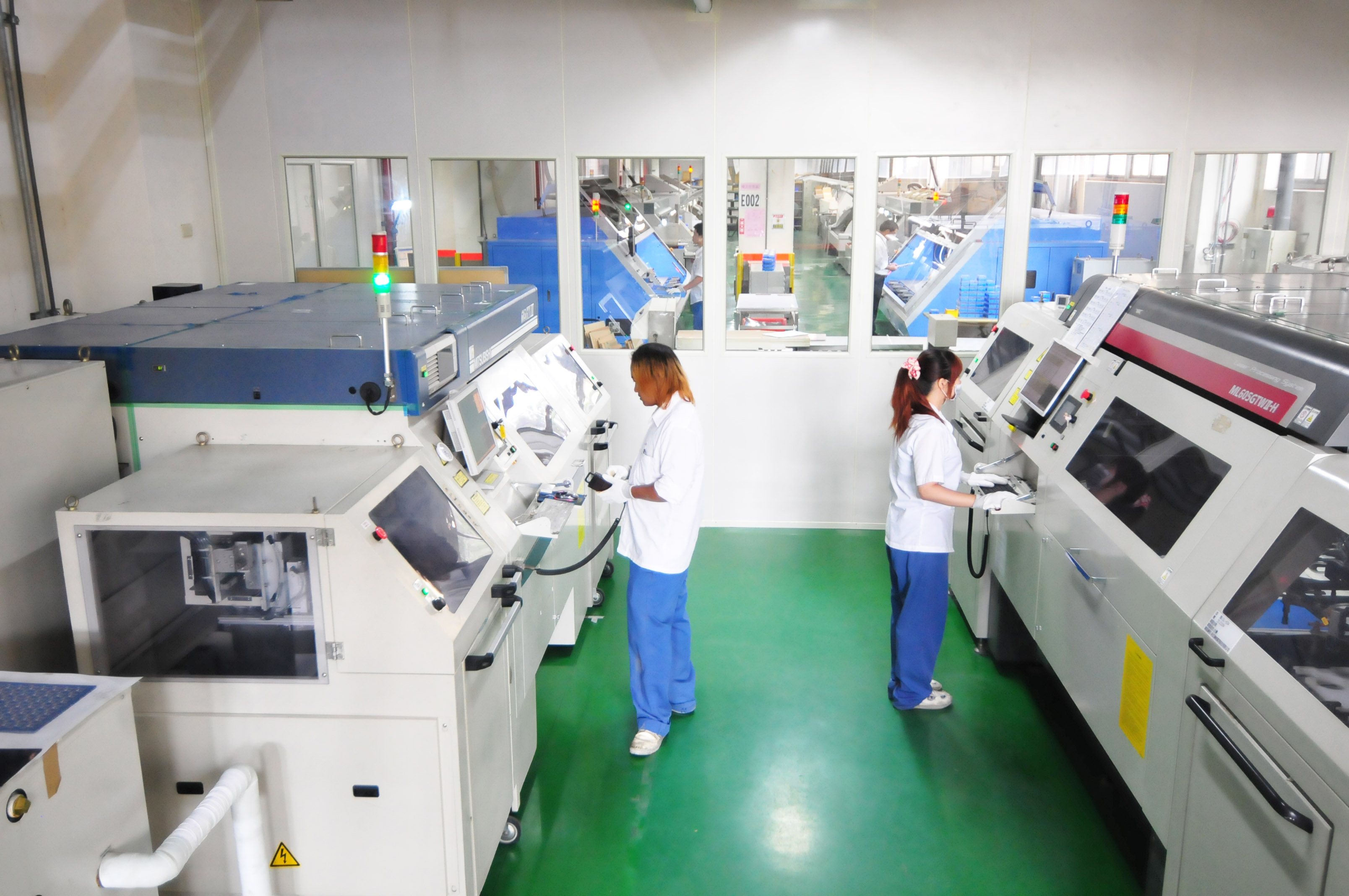

Equitments Photo
